"High-Performance Stamping with 200 Ton Yadon Press Line"

Optimized for efficiency, durability, and seamless large-scale operations.

200 Ton Yadon Press Line

This Yadon High-Speed Press Line is a powerful system for high-volume, precise metal stamping. It uses its strength and speed to quickly and accurately form parts from very thin sheets (0.1mm to 1mm), making it ideal for many different products. The facility also has welding equipment specifically for electric motor components (like rotors and stators), allowing for a smooth and efficient transition from making the parts to assembling them. Furthermore, we have an in-house facility to design and build the stamping tools (dies), which guarantees fast customization, perfect quality, and zero defects for everything we produce for the automotive, industrial, and electric motor industries.

Technical Specification:

Main Mechanical Press J76-220 – 220 Tons of High-Speed Precision

ModelJ76-220
Rated tonnage220 tons
Stroke of Slide30 mm
Strokes per minute120-400 spm
Max. die setting height420 mm
Distance between uprights (L-R*F-B)1940×420 mm
Size of Table (L-R*F-B*T)1900×700
Bottom Size of Slide1900×950 mm
Voltage415V/50Hz/3Phases
Main motor37KW
Air pressure>0.6 Mpa

Double-reel Decoiler

TypeInner-distended Type, Manual
Max Outer Diameter of CoilΦ1200mm
Inner Diameter of CoilΦ460-Φ540mm
Max Width of Coil300mm
Max Coil Weight2×1500Kg

S-type Straightener

Max Strip Width300mm
Suitable Strip Thickness0.2-1.0mm
Speed Range0-60m/min
Motor Drive ModeBy frequency invertor
Feeder Height200±20mm

Feeder (High Speed Servo Feeder)

ModelSNCF-300
Material Width300mm
Material Thickness0.2-1mm
Feeding Speed60m/Min
Release MethodServo Release
Feed DirectionLeft-right

Electrical Components

Servo MotorYASKAWA 4.4kw/1.3kw
Motion ControllerYASKAWA
Low Voltage ComponentsSCHNEIDER
HMI (Human Machine Interface)Proface
EncoderHengstler

Pitch vs SPM (Strokes/Minute) @ 180° Feeding Angle

Pitch <50mmMax 600spm
Pitch <75mmMax 500spm
Pitch <100mmMax 400spm
Pitch <150mmMax 300spm
Pitch <200mmMax 220spm
Pitch <250mmMax 180spm
Pitch <300mmMax 150spm
Pitch <400mmMax 100spm

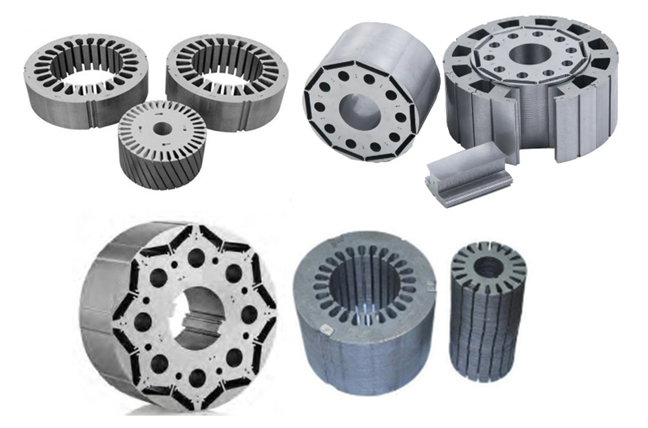

Product 1

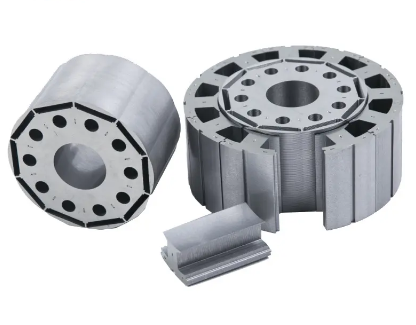

Product 2
Product 3

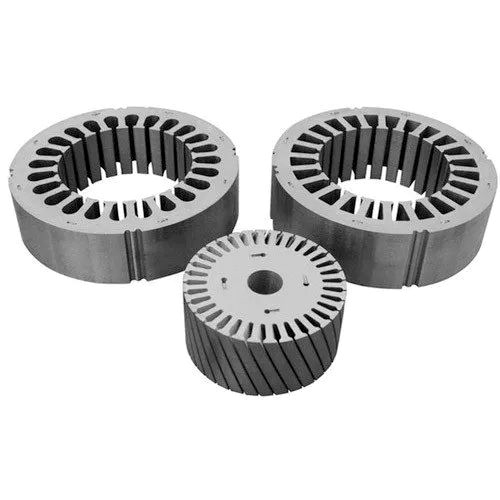

Product 4

"High-Performance Stamping with 125 Ton Yadon Press Line"

Optimized for efficiency, durability, and seamless large-scale operations.

125 Ton Yadon Press Line

The 125-ton Yadon high-speed press line is engineered for high-precision, high-volume metal forming applications. With a robust welded steel frame and the ability to deliver up to 280 strokes per minute, it ensures stability, accuracy, and consistent production performance. The machine is ideal for stamping operations in industries such as HVAC fin production, can lid manufacturing, and aluminum packaging. The 125-ton Yadon high-speed press line is engineered for high-precision, high-volume metal forming applications. With a robust welded steel frame and the ability to deliver up to 280 strokes per minute, it ensures stability, accuracy, and consistent production performance. The machine is ideal for stamping operations in industries such as HVAC fin production, can lid manufacturing, and aluminum packaging. The Yadon 125T press line is a complete, modular system, including components such as uncoilers, air feeders, suction stackers, and integrated hydraulic and electric systems. Its energy-efficient design, coupled with precise motion control, makes it suitable for large-scale manufacturing environments where zero-defect output and consistent quality are essential.

Product 1
Product 2
Product 3
Product 4

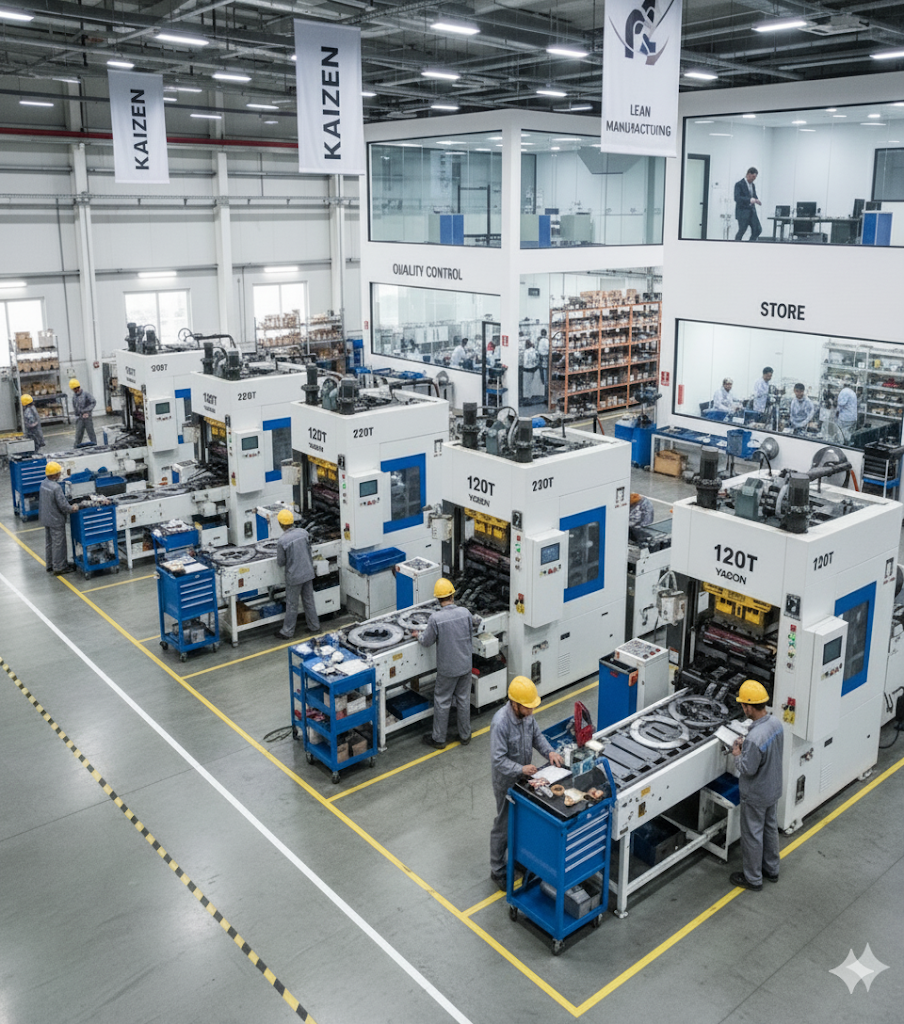

State-of-the-Art Manufacturing Facility

Designed for Precision, Built for Performance

State-of-the-Art Manufacturing Facility

Our manufacturing plant spans 5,000 sq. ft., strategically designed to house up to 5 high-speed press lines. The layout ensures smooth material flow, optimized production efficiency, and adherence to the highest quality standards.

The facility is equipped with modern infrastructure, dedicated rotor and stator welding zones, and specialized press tool design and manufacturing areas to support end-to-end stamping operations.
